Enclosed Burner Rules - Nelson

Enclosed solid fuel burners cannot be installed in the Nelson Urban Area unless they are replacing an existing lawfully established solid fuel burner that has not been phased out. If there is no existing solid fuel burner in your home you can install an ultra-low emission pellet fire, gas or diesel burner or electric heating such as a heat pump.

Note if you are replacing an existing solid fuel burner with another solid fuel burner, you must have your building consent for the new burner lodged with Council and issued before you remove the existing burner.

Banned as of 1 January 2012

In these areas, enclosed burners installed between 1996 and 1999 can no longer be used or replaced.

Airshed A: Hospital area, Bishopdale, Victory, Toi Toi, between the colleges, Washington Valley
Airshed B1: Tahunanui and Tahunanui Hills south of The Cliffs

In these areas enclosed burners installed between 1991 and 1995 can no longer be used or replaced.

Airshed B2: Stoke, Wakatu and Enner Glynn

Am I affected?

Don't know if your home is affected by the air quality rules? Read more in 'Burners for Beginners'.

What is an enclosed burner?

An enclosed burner is a small-scale fuel-burning appliance, where the combustion of solid fuel occurs within a firebox enclosed by a door, and where there is generally a controlled supply of air to the fire. It includes free-standing or in-built wood burners, pellet fires, potbelly stoves, multi-fuel burners like Junos and 'chippies', and coal ranges, but excludes any open fire.

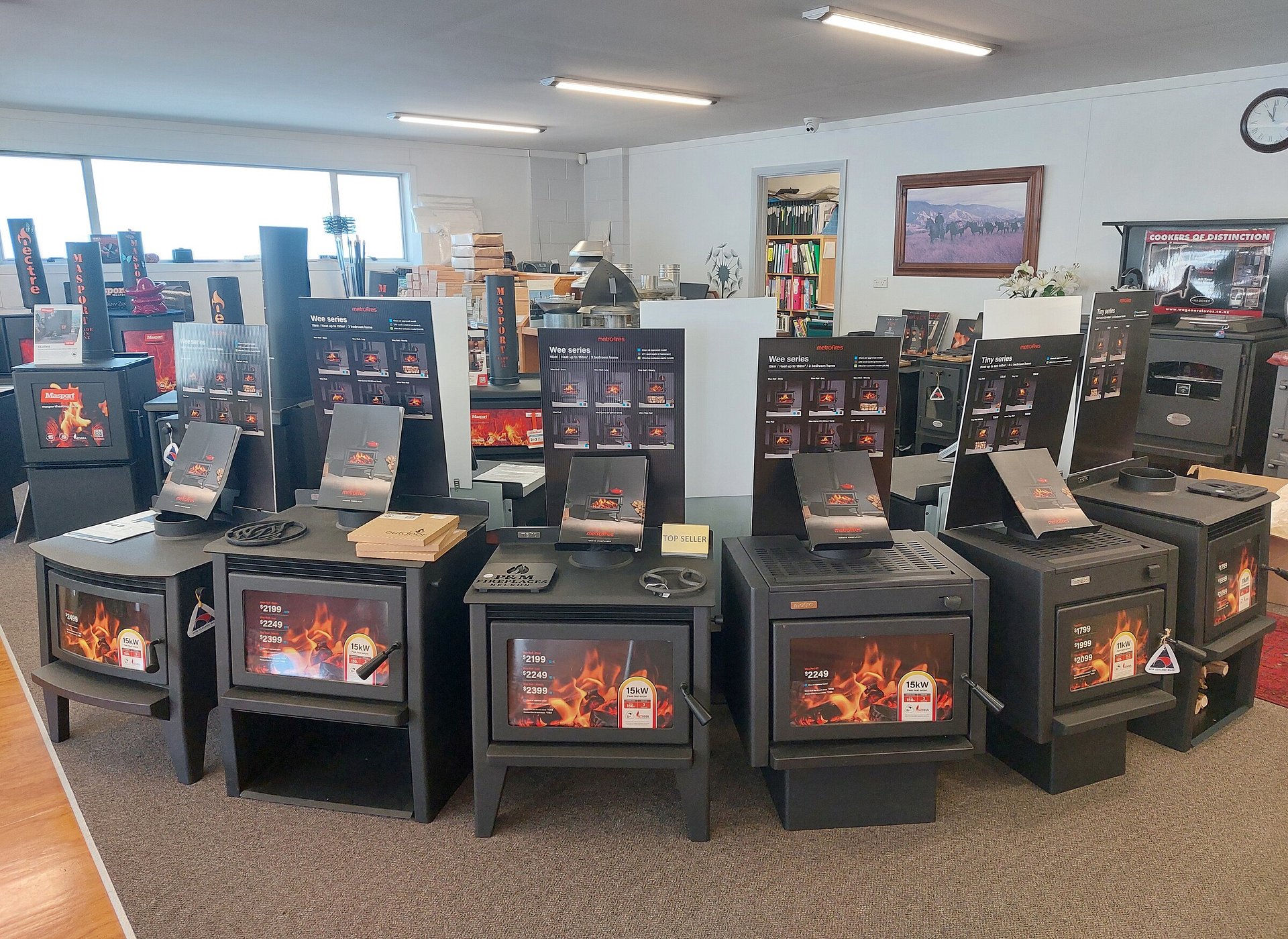

Examples of enclosed burners

Freestanding woodburner

Pellet burner

Potbelly

Replacing your enclosed burner

When replacing your enclosed burner the best heating choice you can make for Nelson’s air quality is a non-polluting heater such as a heat pump, electric heater or flued gas heater. You can also choose a Council authorised wood burner or pellet burner to replace your enclosed burner.

In the urban Nelson area, and on rural properties less than 2 hectares in size, the only enclosed burners that can replace an existing lawfully established open fireplace or burner are those authorised by the Council as meeting clean air emission and efficiency standards.

Read the list of Council-approved wood burners.

Read the list of Council-approved ultra-low emission pellet burners.

Learn more about other clean heating options available that improve Nelson's air quality.

My existing burner doesn't have a building permit or consent

This can be fixed! You do have to get that legalised before you can replace your burner with another one.

If you want to replace your non-consented burner as soon as possible with an authorised burner you will need to fill out a Burner Authentication Form and apply to the Council and an inspector will call in to check it out. This process costs $120. Burner Authentication Form.

Note: Burner authentication will determine the installation date of your burner and may result in your burner being phased out already under rules above.

If you want to carry on using your non-consented burner before replacing it at a later date you need to get a Certificate of Acceptance from Council. This ensures your burner is safe to continue using, and also 'cleans up' your house's file, making it easier for re-sale or for when you replace the burner with another. Without this there could be insurance implications if the fire were to fail. Contact the Council on +64 3 546 0200 for further details on obtaining a Certificate of Acceptance.

I am building a new home

If you are building a new house or if you don't have an existing fire, you can install an ultra-low emission pellet burner.

Pellet burners are a special type of small-scale wood-burning appliance that burn small compressed sawdust pellets. Because the fuel is of a regular size and moisture content, and pellets are fed into the fire by an electrically driven auger, they burn much more effectively than other wood burners. Some of these burners are so efficient with very low emissions that they can be installed where no previous fireplace existed.

A complete list of Council-approved ultra-low emission pellet burners is available through NCC or TDC.

Council Approved Woodburners

Authorised Solid Fuel Burners:

If you have an existing lawfully established (consented) wood burner or solid fuel enclosed burner, you can replace it with any one of the solid fuel burners listed below.

These have been authorised to be installed under rule AQr.25 of the Council's Air Quality Plan.

If you do not currently have an enclosed burner, or are building a new home, you can install especially low emission pellet burners as authorised under rule AQr.26 of Nelson City Council's Air Quality Plan.

In the Urban Area of Airshed B2 and Airshed C, If you do not currently have an enclosed burner, or are building a new home, you can install an ultra low emission woodburner (ULEB) as authorised to be installed under rule AQr.26A of the Council's Air Quality Plan..

The burners below are grouped under the name of the company that applied to authorise them. That company is, therefore, legally responsible for ensuring conditions of authorisation are met. It does not promote any particular burner or agency involved with manufacturing or marketing them. To purchase a burner it is suggested you contact local retailers.

Notes and conditions

PEF = Particulate Emission Factor
SHE = Space Heating Efficiency
IB = in-built
FS = free-standing
NT = Not Tested. The appliance has not been fully tested to NZS 4012/4013. Authorisation is based on test results for a similar appliance or indicative testing for this appliance, together with an opinion from the testing agency.

Aber Holdings Limited Kent Astron CAFSDry WoodNo0.767%110162

Kent Firenze CAFSDry WoodNo0.767%110613

Kent Forbes KWF295-6964FSDry WoodNo1.066%181319

Kent Geneva MaxFSDry WoodNo1.165%N0032

Kent Kea Rad (CA)FSDry WoodNoNTNTN0038

Kent Kea Rad IIFSDry WoodNo0.869%111358

Kent Kiwi Rad IIFSDry WoodNo0.869%111356

Kent Kiwi Rad Clean AirFSDry WoodNo1.270%N0017

Kent Logfire IIIBDry WoodNo0.569%142832

Kent Logfire MaxIBDry WoodNo1.266%N0018

Kent Quantum Max CAFSDry WoodNo0.569%071799Kent RataIBDry WoodNo0.569%142831

Kent RuapehuFSDry WoodNo0.566%191312

Kent Signature CAFSDry WoodNo0.971%111733

Kent Tile Fire Max CAIIFSDry WoodNo0.569%132877

Kent HaastFSDry WoodNo1.066%144660

Kent AspiringFSDry WoodNo1.066%144661

Kent MurchisonFSDry WoodNo1.066%144662

GEO Compact LegsFSDry WoodNo0.869%165503

GEO Compact PedestalFSDry WoodNo0.869%165501

GEO Compact WoodboxFSDry WoodNo0.869%165502

GEO Midi LegsFSDry WoodNo1.074%165497

GEO Midi PedestalFSDry WoodNo1.074%165495

GEO Midi WoodboxFSDry WoodNo1.074%165496

Kent BenmoreFSDry WoodNo0.869%165499

Kent CardronaFSDry WoodNo0.869%165498

Kent OxfordFSDry WoodNo0.869%165500

Apricus Eco Energy

ApplianceTypeAuthorised FuelWetbackP.E.F. (g/kg)S.H.E.

Auth.#

Easypell 16-20kWFSpelletsYes0.1785%

194785

Easypell 25-32kWFSPelletsYes0.1887%194783

Black & Robinson LimitedApplianceTypeFuelWet BackP.E.F (g/kg)S.H.E.Auth#Flumenfire BlendaFSPelletsNoNTNT142651

Flumenfire CorallaFSPelletsNo0.6280%142551

Flumenfire MorganaFSPelletsNoNTNT142650

Central Heating New Zealand ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Woodpecker Pellet Boiler (20kW)FSPelletsYes0.585%071407

Woodpecker Pellet Boiler (30kW)FSPelletsYes0.686%071413

Woodpecker Executive 25 kwFSPelletsYes0.481%092973

C H Faul & Company LimitedApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Froling PE1 25FSPelletsNo0.294%170392

Froling PE1 30FSPelletsNo0.294%169480

Froling PE1 35FSPellets No 0.2 94% 169483

Froling S4 Turbo 15FSDry WoodNo0.2667%167025

Froling S4 Turbo 22FSDry WoodNo0.3268%168954

Froling S4 Turbo 28FSDry WoodNo0.468%168955

Froling S4 Turbo 38FSDry WoodNo0.468%168956

Froling S4 Turbo 40FSDry WoodNo0.472%168957

Crichton Engineering Limited ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Jayline CS600

FSDry WoodNo1.165%N0036

Magnum ArdosIBDry WoodNo0.670%102990

Magnum FurnoIBDry WoodNo0.669%102992

Magnum P100FSDry WoodNo1.168%N0015AMagnum P300FSDry WoodNo1.165%N0035Dallas Metal Industries Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Milan Caldo Rustic Harmony Clean AirFSDry WoodNo1.270%N0017AMilan Harmony IB CA Harmony SeriesIBDry WoodNo1.267%N0018AMilan Ar'dore C/AFSDry WoodNo0.965%110610

Milan Caldo C/AFSDry WoodNo0.767%110305

Milan Milano C/AFSDry WoodNo0.971%110611

Milan Piccolo C/A Harmony SeriesFSDry WoodNo0.767%110304

ECO Flame Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Ecoflame FS-1FSPelletsNo0.680%074067

Ecoflame FS-1FSPelletsYes0.574%074069

Oriel Pellet Fire (freestanding)FSPelletsNo0.572%093941

Oriel Pellet Fire (insert)IBPelletsNoNTNT093942

Pellco Milford Pellet Fire (freestanding)FSPelletsNo0.579%093945

Pellco Milford Pellet Fire (insert)IBPelletsNoNTNT093946

Sirocco Slimline Pellet Fire (free standing)FSPelletsNo0.579%093943

Sirocco Slimline Pellet Fire (insert)IBPelletsNoNTNT093944

Ecomax Co NZ Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Ecomax Wood Pellet BoilerFSPelletsYesNTNT101313

Ecostove Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Ursa 159FSDry WoodNo0.980%131300

Ursa Minor 135FSDry WoodNoNTNT142889Ursa Minor 159FSDry WoodNoNTNT142890

Eenergy LtdApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Animo AdevoFSPelletsNo0.1886%185106

Animo AvitoFSPelletsNo0.2585%191133

Animo PureFSPelletsNo0.2687%191134

Champion Duos PlusFSPelletsNo0.4484%194215

Champion EnaFSDry woodNo0.6371%156962

Champion Ena Plus Pellet FireFSPelletsNo0.3381%182875

Mia WhisperFSPelletsNo0.688%122075

Rika ComoFSPelletsNo0.287%134108

Rika Corso Pellet FireFSPelletsNo0.2786%165124

Rika Domo Pellet FireFSPelletsNo0.389%165120

Rika Filo Pellet FireFSPelletsNo0.2788%165121

Rika InternoFSPelletsNo0.2384%182877

Rika LivoFSPelletsNo0.4186%182879

Rika KapoFSPelletsNo0.2385%185104

RIKA Memo 9kWFSPelletsNo0.385%144828

Rika MiroFSPelletsNo0.3787%185105

Rika PicoFSPelletsNo0.385%134106

Rika RevoFSPelletsNo0.287%134107

Rika Roco Pellet FireFSPelletsNo0.2385%165122

Rika Sumo Pellet FireFSPelletsNo0.3183.7165123

Rika TopoFSPelletsNo0.386%134109

EnviroSolve LimtedApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #RAIS Bionic FireFSDry WoodNo0.772%152619

Escea Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Spartherm Varia 2L 80h-P7IBDry WoodNo0.9665.9168071

Spartherm Varia 2R 80h-P7IBDry WoodNo0.9665.9168072

Spartherm Varia A-FDh-P8IBDry WoodNo1.4165.6%N0046

Spartherm Varia AS-P8IBDry WoodNo0.9967%167167

Spartherm Varia ASh-P8IBDry WoodNo0.9967%167168

Spartherm Varia Bh-P7IBDry WoodNo0.9265%167169

Firemakers Limited ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Parkwood Compact (damperless)FSPelletsNo0.582%083312

Parkwood Compact standardFSPelletsNo0.577%083309

Parkwood Insert (damperless)IBPelletsNoNTNT083313

Parkwood Insert standardIBPelletsNo0.577%083310

Parkwood Maxi (damperless)FSPelletsNoNTNT083311

Parkwood Maxi standardFSPelletsNo0.682%083308

Fireplace Products Australia Pty Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Regency MontroseIBDry woodNo0.668%191595

Vancouver F2402MFSDry WoodNo1.270%N0033

Glen Dimplex Australasia Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Logaire MinosFSDry WoodNo1.276%N0006Logaire TalismanFSDry WoodNo1.073%090891

Masport AkaroaFSDry WoodNo0.767%174234

Masport Akaroa Wood StackerFSDry WoodNo0.767%181946

Masport Atlanta BayFSDry WoodNo1.177%N0042 or 111995

Masport F2000FSDry WoodNo0.677%092857

Masport F2200CFSDry WoodNo0.871%102104

Masport F3000FSDry WoodNo0.669%092856

Masport F3300CFSDry WoodYes0.566%122351

Masport Grandview Series 3FSDry WoodNo0.769%111730

Masport Hestia 2 Clean AirFSDry WoodNo0.666%110045

Masport I3000IBDry WoodNo0.468%103869

Masport I3000 WetbackIBDry WoodYes0.866%111333

Masport I5000IBDry WoodNo0.766%111499

Masport Kronos Clean AirFSDry WoodNo0.765%110044

Masport LE 4000 ProvincialIBDry WoodNo0.667%071591

Masport Minos 2 Clean AirFSDry WoodNo0.668%110047

Masport R1600FSDry WoodNo0.969%133819

Masport RakaiaFSDry woodNo0.4266200856

Masport TalismanFSDry WoodNo1.073%110046

Masport TaraweraFSDry WoodNo0.668%181873

Masport F3300CFSDry WoodNo0.572%103815

Masport Osburn 1600 (Dry)FSDry WoodNo0.770%090550

Masport Osburn 1600 Mk II WetFSDry WoodYes0.767%111500

Masport R1500L/R1500P/R1500 WoodstackerFSDry WoodNo0.969%121119

Masport R3000ASHFSDry WoodNo0.3666%191126

Masport R3000WSFSDry WoodNo0.3666%191125

Masport Waimakariri ASHFSDry WoodNo0.3466%203574

Masport Waimakariri LEGFSDry WoodNo0.3466%203576

Masport Waimakariri PED FS Dry Wood No 0.34 66%202415

R5000L/R5000P (dry, with fan)FSDry WoodNo0.773%131557

R5000L/R5000P (wetback)FSDry WoodYes0.666%131556

R5000L/R5000P (without wetback)FSDry WoodNo0.571%131295

Storm 2 Pellet FireFSPelletsNo0.776%090379

Glen Dimplex New Zealand LtdApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Logaire LUF2000FS SoftwoodNo0.4666231305

Logaire LUF2000 AshFSSoftwood No0.4666232831

Logaire LUF2000 WoodboxFSSoftwoodNo0.4666232955

Logaire LUF3000 (LEB)FSDry WoodNo0.5565%222642

Logaire Minos 2 Clean AirFSDry WoodNo0.668%092858

Masport Bannockburn I2000IBDry WoodNo0.468%154102

Masport Bannockburn I2000IBDry WoodYes0.866%154103

Masport Clutha Ash FSDry WoodNo0.4666%232829

Masport Clutha WoodboxFSDry WoodNo0.4666%232953

Masport Clutha LUF2000FSDry WoodNo0.4666%231301

Masport HeartlandFSDry WoodNo0.765%163230

Masport HurunuiFSDry WoodNo0.5565%222643

Masport Hurunui AshFSDry WoodNo0.5565%234265

Masport Hurunui LegFSDry WoodNo0.5565%234267

Masport R1200 LEGFSDry WoodNo0.4936%191121

Masport R1200 PEDFSDry WoodNo0.4936%191120

Masport R5000WSFSDry WoodYes0.666%131556

Masport R5000WSFSDry WoodNo0.571%131295

Masport Mackenzie R10000FSDry WoodNo0.968%143970

Masport Mackenzie R10000FSDry WoodYes0.865%147214

Masport WanakaFSDry WoodNo0.765%163163

Masport R3000 PedFSDry WoodNo0.3666%186018

Masport R3000 LegFSDry WoodNo0.3666%186019

Masport Rangitata BeveledIBDry WoodNo0.4168%203667

Hewitsons Ltd - Firenzo ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Contessa UrbanFSDry WoodNo1.067%N0026

Firenzo Contessa AG – Clean AirFSDry WoodNo1.073%093218

Firenzo Contessa AG – Clean AirFSDry WoodYes0.966%093219

Dante UrbanFSDry WoodNo1.174%N0029

Deco Urban SDIBDry WoodNo1.367%N0028

Firenzo Athena Aqualux AGIBDry WoodYes1.066%102108

Firenzo Athena Flush AG08IBDry WoodNoNTNT091593

Firenzo Bay AG (with Athena or Forte fascia options)IBDry WoodNo1.074%103157

Firenzo Bronte AG (top outlet)FSDry WoodNo1.076%N0012

Firenzo Bronte Top Outlet AGFSDry WoodNo1.076%072377

Firenzo Contessa AG10 WETFSDry WoodYes1.066%111059

Firenzo Encore AGFSDry WoodNo0.768%121147

Firenzo Encore Urban WetFSDry WoodYes1.566%N0045

Firenzo Forte Aqualux AGIBDry WoodYes1.066%102107

Firenzo FusionFSDry WoodNo0.277%173161

Firenzo Fusion BoilerFSDry WoodYes0.288%172661

Firenzo Kompact AGIBDry WoodNo0.967%122076

Firenzo Lady Kitchener AG10-WBFSDry WoodYes0.768%103472

Firenzo Royale AG (with or without fan)FSDry WoodNo0.970%092965

Firenzo Viking AG (Dryback)FSDry WoodNo0.968%102465

Firenzo Viking AG (Wetback)FSDry WoodYes0.967%102472

Firenzo Forte Flush AG08IBDry WoodNo0.969%090133

Firenzo Lady Kitchener AG08 - DrybackFSDry WoodNo0.573%093220

Lady Kitchener UrbanFSDry WoodNoNTNTN0027

FSDry WoodYes1.474%N0027

Plaza Urban SDIBDry WoodNo1.367%N0030

Firenzo Lady Kitchener Ultra (Leg)FSDry WoodNo0.7367%203510

Firenzo Lady Kitchener Ultra (Pedestal)FSDry WoodNo0.7367%203699

Firenzo Lady Kitchener Ultra (Drawer)FSDry WoodNo0.7367%203701

Firenzo Lady Kitchener Ultra (Platform)FSDry WoodNo0.7367%203703

Firezno StellaFSSoftwoodNo0.5265%231104

Firenzo TopazInbuilt FireboxSoftwoodNo0.9866%212341

Firenzo TopazFSSoftwoodNo0.9866%213955

KemlanApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Kemlan Celestial 900 insertIBDry woodNo1.467%N0047

Kemlan Celestial 900 freestandingFSDry woodNo1.467%N0048

Kemlan CubeFSDry woodNo1.167%N0049

Lansdowne Resource Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Ethos Aquos FS100WFSDry WoodYes0.666%091861

Ethos Ares or Ethos IS100 AresIBDry WoodNo0.367%03001

Ethos Ares DeluxeIBDry WoodNo0.367%103880

Ethos AsteriaFSDry WoodNoNTNT083240

Ethos Genesis or Ethos FS100FSDry WoodNo0.672%02010 or 121785

Ethos HeliosFSDry WoodNoNTNT083239

Ethos HeraFSDry WoodNoNTNT083238

Ethos PhoenixFSDry WoodNo0.672%091862

McKenzie Heating Design ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #McKenzie Auto Stoker Boiler Unit*FSOhai "pea" size coal or similarYes1.573%N0034

* Approval for the McKenzie Auto Stoker Boiler Unit is limited to use of Ohai “pea” size (between 14mm and 21mm) coal or any similar coal having a gross calorific value greater than or equal to 25.18Mj/kg, an ash content less than or equal to 3.5%, and a sulphur content no greater than 0.5%.

Pioneer Manufacturing Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Metro Ambie OneFSDry WoodNo1.071%120834

Metro Ambie Plus (with wetback)FSDry WoodYes0.567%120836

Metro Ambie Plus (without wetback)FSDry WoodNo0.469%120835

Metro Bay FS Pellet FireFSPelletsNo0.688%083138

Metro Bay Insert Pellet FireIBPelletsNo0.583%083139

Metro Classic Rad (dryback)FSDry WoodNo0.667%151777

Metro Classic Rad (wetback)FSDry WoodYes0.667%151779

Metro Eco Euro Ped (with Direct Vent)FSDry WoodNo0.670%112001

Metro Eco Euro Ped (without Direct Vent)FSDry WoodNo1.066%112019

Metro Eco Euro RadFSDry WoodNo0.772%072608

Metro Eco Euro Trad (with Direct Vent)FSDry WoodNo0.670%112020

Metro Eco Euro Trad (without Direct Vent)FSDry WoodNo1.066%112022

Metro Eco Mega SmartIBDry WoodNo0.769%110719

Metro Eco Mega Smart (wetback)IBDry WoodYes0.666%111058

Metro Eco RadFSDry WoodNo0.968%N0013

Metro Eco Smart (Dryback)IBDry WoodNo0.568%102411

Metro Eco Smart (Wetback)IBDry WoodYes0.867%102426

Metro Eco Wee Curve *FSDry WoodNo0.668%093460

Metro Eco Wee Ped (Wetback)FSDry WoodYesNTNT102679

Metro Eco Wee RadFSDry WoodNo0.970%092977

Metro Eco Wee Rad (Wetback)FSDry WoodYes1.065%102678

Metro Wee Rad Ultra (with fan)FSDry WoodNo0.3567%191263

Metro Eco Series Pioneer PedestalFSDry WoodNoNTNTN0004

Metro Eco Series Pioneer TraditionalFSDry WoodNoNTNTN0005

Metro Eco Series Wee RadFSDry WoodNo0.970%N0003

Metro Eco Tiny PedFSDry WoodNoNTNT073897

Metro Eco Tiny PedFSDry WoodYesNTNT080009

Metro Eco Tiny RadFSDry WoodNo0.975%072605

Metro Eco Tiny RadFSDry WoodYes0.967%072607

Metro Eco Trad (with fan)IBDry WoodNo0.965%N0009 or 101157

Metro Eco Trend (with fan)IBDry WoodNo0.965%N0008 or 101159

Metro Eco Wee PedFSDry WoodNoNTNT092976

Metro Xtreme Ped DryFSDry WoodNo0.667%141808

Metro Xtreme Ped WetFSDry WoodYes0.666%141810

Metro Eco Wee TradFSDry WoodNoNTNT092974

Metro Eco Wee Trad (Wetback)FSDry WoodYesNTNT102680

Metro Eco Xtreme Ped (Wetback)FSDry WoodYes1.067%102677

Metro Eco Xtreme Ped (with direct vent)FSDry WoodNo0.969%112024

Metro Eco Xtreme Rad (with direct vent)FSDry WoodNo0.968%112026

Metro Eco Xtreme Rad (Wetback)FSDry WoodYes0.969%102676

Metro Mega RadFSDry WoodNo0.6666%156727

Metro Mega RadFSDry WoodYes0.6766%156728

Metro R1FSDry WoodNo0.671%134103

Metro R2FSDry WoodNo0.870%134104

Metro Tiny Rad WoodyFSDry WoodNo0.6266%172397

Metro Tiny Rad Woody (wet)FSDry WoodYes0.6465.9%172398

Metro Wee Rad (dryback)FSDry WoodNo0.670%152162

Metro Wee Rad (wetback)FSDry WoodYes0.767%152163

Metro Wee Ped (dryback)FS Dry WoodNo0.670%151781

Metro Wee Ped (wetback)FS Dry WoodYes0.760%151783

Metro Xtreme RadFS Dry WoodNo0.667%132245

Metro Xtreme Rad (wetback)FSDry WoodYes0.666%132246

Xtreme Ped (wet)FSDry WoodYes0.8766%160207

Xtreme Rad (wet)FSDry WoodYes0.8766%160209

Xtreme Rad Base (wet)FSDry WoodYes0.8766%160209

Metro Ultra InsertIBDry WoodNo0.4266%194338

Metro Wee Rad WoodyFSDry WoodNo0.670%162621

Metro Wee Rad Woody-WetFSDry WoodYes0.767%162663

Metro Ultra Xtreme RadFSDry WoodNo0.3967%200998

Metro Xtreme Rad WoodyFSDry WoodNo0.667%162622

Metro Xtreme Rad Woody-WetFSDry WoodYes0.767%162665

Metro Ultra Tiny RadFSDry WoodNo0.4368%210658

Metro RAD Plus Dry FSDry WoodNo0.5867%232438

Metro RAD Plus WetFSDry WoodYes0.9267%232439

* Approval for the Metro Eco Wee Curve is limited to installations of the appliance where the combustion air is drawn directly from the room in which the appliance is located or where there is provision for combustion air to be drawn from outside of the room via a conduit (or opening) with a minimum cross sectional area at all points of not less than the equivalent of a circle or 100mm diameter, and a maximum ‘equivalent length’ of five metres, (equivalent length is the actual length of the conduit plus appropriate allowances for bends and other restrictions in accordance with normal heating and ventilating practice).

Pyro Fires Limited ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Pyro Classic (with wetback)FSDry WoodYes0.365 %121122

Pyro Classic (without wetback)FSDry WoodNo0.374 %121121

Pyro MiniFSDry WoodNo0.365%174996

Pyroc Mini - WetbackFSDry WoodYes0.367%175008

Retail Links ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Bosca Firepoint 360FSDry WoodNo0.974%110716

Bosca Limit 380FSDry WoodNo0.976%110717

Bosca Spirit 550FSDry WoodNo0.969%110718

Fisher BlenheimFSDry WoodNo1.372%N0022

Fisher HanmerFSDry WoodNo0.874%136309

Fisher HanmerFSDry WoodYes0.969%136310

Jayline CS400FSDry WoodNoNTNTN0015

Jayline FR300FSDry WoodNo0.765.4173527

Jayline FR300PFSSoftwoodNo0.765%231820

Jayline FR300P/WFSSoftwoodYes0.765%232225

Jayline FR300LFSSoftwoodNo0.765%231821

Jayline FR300L/WFSSoftwoodYes0.765%232226

Jayline FR300WSFSSoftwoodNo0.765%231822

Jayline FR300WS/WFSSoftwoodYes0.765%232227

Jayline FR400FSDry WoodNo0.6965.9173529

Jayline IS550IBDry WoodNo0.766%141268

Jayline PR300DRFSDry WoodNo0.4870%232234

Jayline PR300WSFSDry WoodNo0.4870%232236

Jayline PR300CSFSDry WoodNo0.4870%232238

Jayline PR300CDFSDry WoodNo0.4870%232240

Jayline Spitfire Clean Air 2006FSDry WoodNo1.370%N0024

Jayline SS200FSDry WoodNoNTNTN0023

Jayline SS200LFSDry WoodNo0.8.65146949

Jayline SS280L/SS280PFSDry WoodNo0.769%121174

Jayline SS300FSDry WoodNoNTNTN0016

Jayline SS300PFSDry WoodNo0.865%146947

Jayline SS280PWFSDry WoodYes0.8968%157425

Jayline SS400FSDry WoodNoNTNTN0025

Jayline SS600L/SS600P FS Dry Wood No 0.6 67% 120833

Jayline UL200FSDry WoodNo0.3675%184295

Jayline Walltherm AirFSDry WoodNo0.378%153706

Retrospective Design LtdApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #La Nordica Italy Termo DSA*FSDry WoodYesNTNTN0043

La Nordica TermoSuprema Compact DSA*FSDry WoodYesNTNTN0044

Xeoos Twinfire X8FSDry WoodNo0.9868%157094

*Approval for the La Nordica Italy Termo DSA and La Nordica TermoSuprema Compact DSA are subject to Resource Consent RM135028.

Roaring Meg Fires LimitedApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Roaring Meg Eco (LEB)FSSoftwoodNoO.5035214005

Spark Energy Limited ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #

ETA PE15FSPelletsCoilNTNT092969

ETA PE25FSPelletsCoilNTNT092970

ETA PC20FSPelletsYesNTNT121732

ETA PC25FSPelletsYes0.181%121730

ETA PC32FSPelletsYes0.1181%121729

ETA PU11FSPelletsCoil0.1478%110954

ETA PU15FSPelletsCoil0.281%110955

ETA SH20 Gasification BoilerFSDry WoodHot Water Boiler0.3667%168946

ETA SH30 Gasification BoilerFSDry WoodHot Water Boiler0.369%168948

ETA SH40 Gasification BoilerFSDry WoodHot Water Boiler0.3272%168949

Stovax LimitedApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Riva Studio 2IBDry WoodNo1.066%133649

Pellet Fire Solutions ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Blaze King Chinook CK20.NZFSDry WoodNo0.7169%194835

Blaze King Chinook CK30.NZFSDry WoodNo0.369%182628

Blaze King Sirocco SC20L.NZFSDry WoodNo0.7169%191063

Blaze King Sirocco SC20P.NZFSDry WoodNo0.7169%191062

Blaze King Sirocco SC30L.NZFSDry WoodNo0.369%181246

Blaze King Sirocco SC30P.NZFSDry WoodNo0.369%181244

Ravelli CaminoIBPelletsNo0.588%093152

Ravelli Dual 7FSPelletsNo0.286%183131

Ravelli ElenaFSPelletsNo0.481%093217

Ravelli Elena RV 100FSPelletsNo0.481%164071

Ravelli MonicaFSPelletsNo0.388%102844Ravelli Natural 7FSPelletsNo0.386%183132

Ravelli Pompeii HRV 140 TouchFSPelletsYes0.284%180113

Ravelli Rosa R70FSPelletsNo0.284%174364

Ravelli SaraIBPelletsNo0.482%092972

Ravelli Sri AmalfiFSPelletsNo0.580%101152

Enviro EF2 Classic FPI CBIBPelletsNo0.479%082713

Enviro EF2 Classic FS CBFSPelletsNo0.482%081222

Enviro EF3 Bayview FPI CBIBPelletsNo0.481%082715

Enviro EF3 Bayview FS CBFSPelletsNo0.482%081221

Enviro EF5 Evolution FS CBFSPelletsNo0.380%081219

Enviro Mini FS CBFSPelletsNo0.475%081736

Enviro Olympian FPI CBIBPelletsNo0.580%082712

Enviro Olympian FS CBFSPelletsNo0.476%081737

Heatilator ECO-ADV-PS35FSPelletsNo0.471 %121264

The Fireplace Limited ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Quadra-Fire Millenium 2100 ACCFSDry WoodNo0.672%083786

Quadra-Fire Millenium 4300 ACCFSDry WoodNo0.471%083785

Tropicair Heating Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #

Tropicair Kowhai 2000 MkIIIFSDry WoodNoNTNTN0002 or 090722

Tropicair ArdosIBDry WoodNo0.670%102621

Tropicair FurnoIBDry WoodNo0.669%102217

Tropicair Rimu 2000 MkIIIFSDry WoodNo0.972%N0001 or 090721

Tropicair Tawa MkIII (with flue shield)IBDry WoodNo0.665%111879

Tropicair DuoFSDry WoodNo0.179%163595

Tropicair RuaFSDry WoodNo0.270%185999

Wagener Stoves (Lion) LimitedApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Wagener SparkyFSDry WoodNo0.5568%194116

Warmington Industries ApplianceTypeAuthorised
FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Warmington

LewisFSDry WoodNo0.872%071229

LindisFSDry WoodNo1.272%N0019

McKenzieFSDry WoodNo1.565%N0020

Tasman Series 46LFSDry WoodNo0.966%111359

Warmington StudioFSDry WoodNo0.970%071226

Studio Stove-14FSDry WoodNo0.6671%160215

Studio Stove-14FSDry WoodYes0.5567%160362

W H Harris Ltd ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #

Ferva CorsairFSDry WoodNo0.671%121490

Ferva SaturnFSDry WoodNo0.276%172501

Jayline IS500IBDry WoodNo0.967%111085

Kent Barker II DryFSDry WoodNo0.571%111240

Kent Barker II WetbackFSDry WoodYes0.565%111241

Kent Logfire SupremeIBDry WoodNo0.967%111086

Kent Tui Rad DryFSDry WoodNo0.771%111269

Kent Tui Rad WetbackFSDry WoodYes0.765%111270

Woodsman Aspen DryFSDry WoodNo0.571%111306

Woodsman Aspen WetbackFSDry WoodYes0.565%111307

Woodsman BlazeFSDry WoodNo0.766%082947

Woodsman BostonFSDry WoodNo0.867%073734

Woodsman Brunner DryFSDry WoodNo0.571%111242

Woodsman Brunner Dry MKIIFSDry WoodNo0.571%142896

Woodsman Brunner WetbackFSDry WoodYes0.565%111243

Woodsman Brunner Wetback MKIIFSDry WoodYes0.565%142897

Woodsman Coleridge Pedestal

FSDry WoodNo0.4966%211399

Woodsman Coleridge Leg

FSDry WoodNo0.4966%211474Woodsman ECR NoVoFSDry WoodNo0.967%153733Woodsman FlareFSDry WoodNo1.068%134775Woodsman Flare (Wetback)FSDry WoodYes0.965%135021Woodsman Kanaku (LEB)FSDry WoodNo0.3174%223217Woodsman ManhattanFSDry WoodNo0.867%073735Woodsman Matai DLX 165FSDry WoodNoNTNT03014Woodsman Matai DV1-165 Deluxe*IBDry WoodNo0.567%04002Woodsman Matai DVI-165 Standard*IBDry WoodNoNTNT04003Woodsman Matai ECR 165FSDry WoodNo0.872%03015Woodsman Matai ECR ecoFSDry WoodNo0.569%110263Woodsman Matai ECR MkIIFSDry WoodNoNTNT071128Woodsman Matai ECR MkIIIFSDry WoodNo0.771%102148Woodsman Matai ECR MkIVFSDry WoodNo0.875%102149Woodsman Matai ECR VFSDry WoodYes0.765%102454Woodsman NoVo ECR WetbackFSDry WoodYes0.9265%155148Woodsman RegentIBDry WoodNo0.969%072526Woodsman SereneFSDry WoodNo0.3666%193597Woodsman Serence WBFSDry WoodYes0.3766%194587Woodsman Serene PetiteFSSoftwoodNo0.3566%212698Woodsman TarrasFSDry WoodNo0.970%094113Woodsman Tarras MKII (with wetback)FSDry WoodYes0.565%120927Woodsman Tarras MKII (without wetback)FSDry WoodNo0.469%120925Woodsman Tarras Dry MKIIIFSDry WoodNo0.469%143492Woodsman Tarras Wetback MKIIIFSDry WoodYes0.565%143494Woodsman Tarras-WBFSDry WoodYes1.065%094114Woodsman Tasman DryFSDry WoodNo0,571%111475Woodsman Tasman Dry MKIIFSDry WoodNo0.571%142898Woodsman Tasman WetbackFS Dry Wood Yes 0.5 65% 111477 Woodsman Tasman Wetback MKIIFSDry Wood Yes 0.5 65% 142899 Woodsman TotaraIBDry WoodNo0.967%110220

* Approval for the Woodsman Matai DVI - 165 Deluxe and Standard burners is limited to installations of the appliance where all the combustion air is drawn directly from outside the room in which the appliance is installed, and otherwise in compliance with all the conditions of authorisation 04002 and 04003.

Yunca Heating ApplianceTypeAuthorised FuelWet BackP.E.F. (g/kg)S.H.E.Auth. #Yunca Fitzroy (sub 1.0)FSDry WoodNo0.967%073065

Yunca Hobson (sub 1.0)FSDry WoodNo1.070%137100

Yunca Monte Euro (CA Sub 0.7)FSDry WoodNo0.766%135289

Yunca Monte Euro (CA Sub 1.0)FSDry WoodNo1.069%135291

Yunca Monte (CA Sub 0.7) with baseFSDry WoodNo0.766%122761

Yunca Monte (CA Sub 0.7) with legsFSDry WoodNo0.766%122762

Yunca Monte (CA Sub 1.0) with baseFSDry WoodNo1.069%122764

Yunca Monte (CA Sub 1.0) with legsFSDry WoodNo1.069%122765

Yunca Wegj 2000 (sub 1.0)FSDry WoodNo0.867%130432

Yunca Oscar (CA Sub 0.5)FSDrywoodNo0.567%152161

Yunca Monte Base Wet Sub 1.0FSDry WoodYes1.066%157585

Yunca Monte Euro Wet Sub 1.0FSDry WoodYes1.066%157586

Yunca Monte Leg Wet Sub 1.0FSDry WoodYes1.066%157587

Yunca Olli (CA 1.1) with hard-wired fanFSDry WoodNo1.166%223877

Yunca Xander Insert (CA Sub 1.0)IBDry WoodNo1.065%167121

P & M Fireplaces have an extensive range of Woodburners available including options listed.

For more info contact:

P & M Fireplaces

128 Tahunanui Drive, Tahunanui, Nelson

Phone: 03 548 5742

Www.pmfireplaces.co.nz

P & M Fires
Site Visit Service

P & M Fireplaces Offer a Site Visit Service whereby they can work with Home Owners, Landlords & Rental Companies to be able to accurately work out the most suitable Woodburner to be able to fit safely and securely into the space available.

Save yourself Time, Effort Stress & Hassle.

Dont make the mistake of buying the wrong Woodburner or buying from an outfit who cant install your woodburner properly or provide any after sales service.

P & M Fireplaces are a One Stop Shop and can take care of council consents within the Nelson (NCC), Tasman (TDC) and Marlborough (MDC) regions.

P & M Fireplaces can assist with seeing your project through to completion from start to finish from Woodburner Sales to Installation by their skilled Installation staff.

Contact P & M Fireplaces to find out more info about their Site Visit Service:

P & M Fireplaces
128 Tahunanui Drive, Tahunanui, Nelson
Phone: 03 548 5742

Www.pmfireplaces.co.nz
